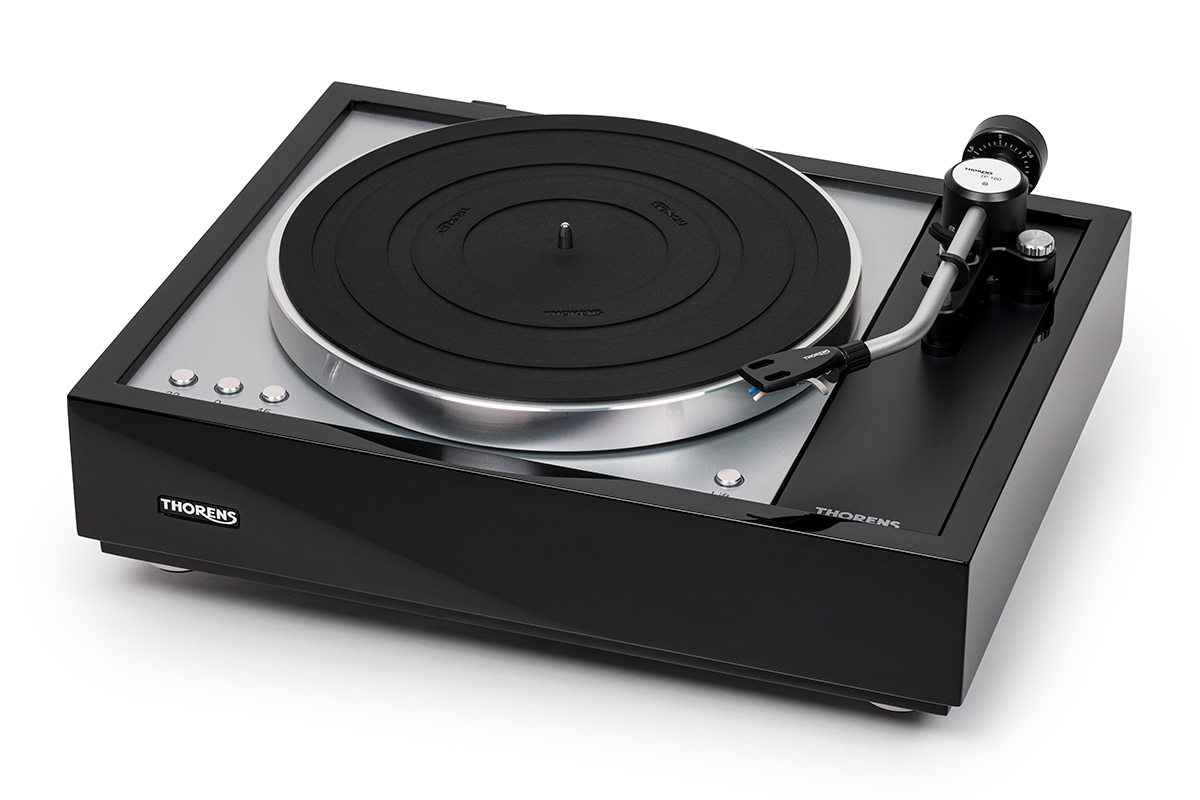

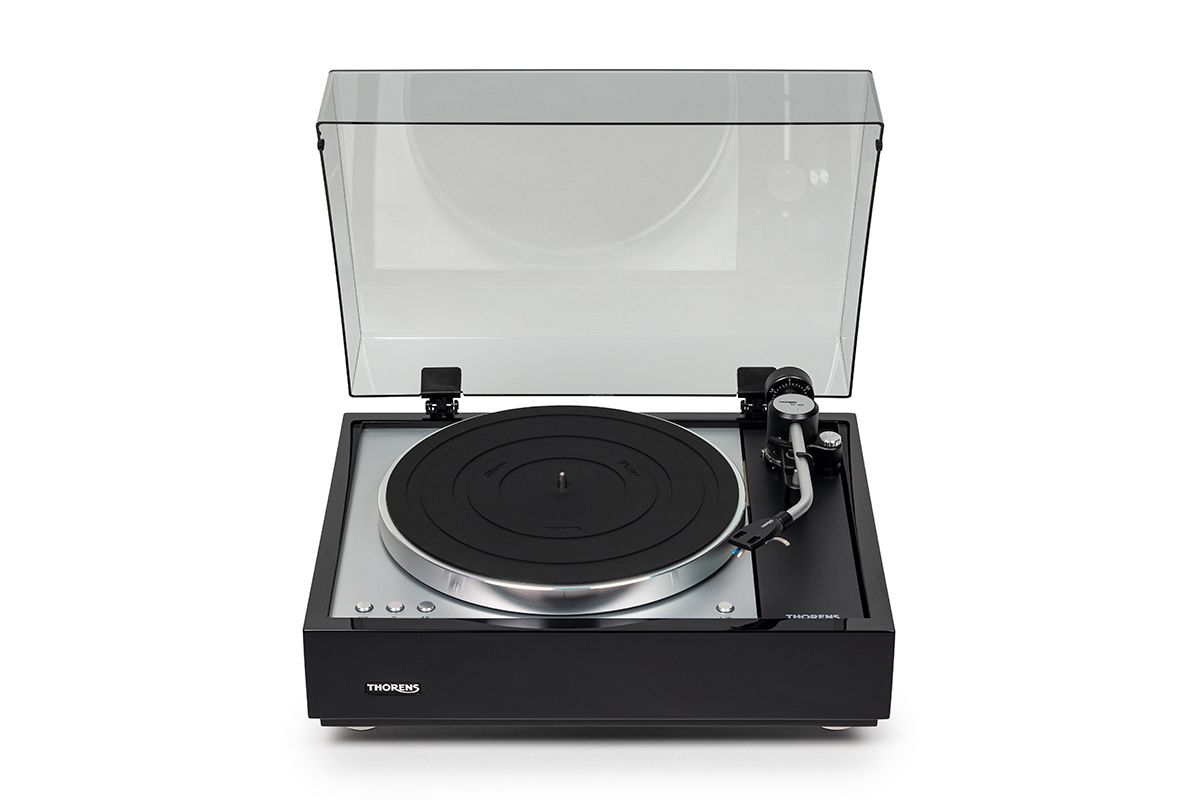

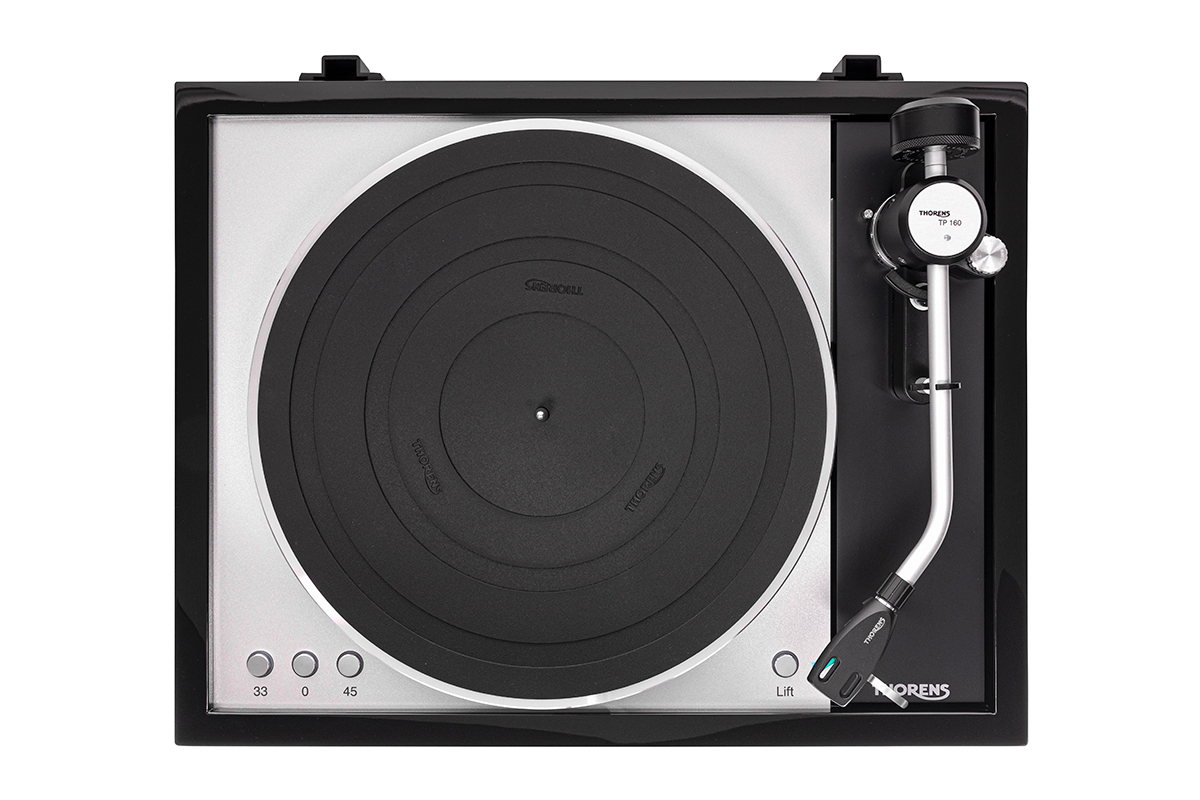

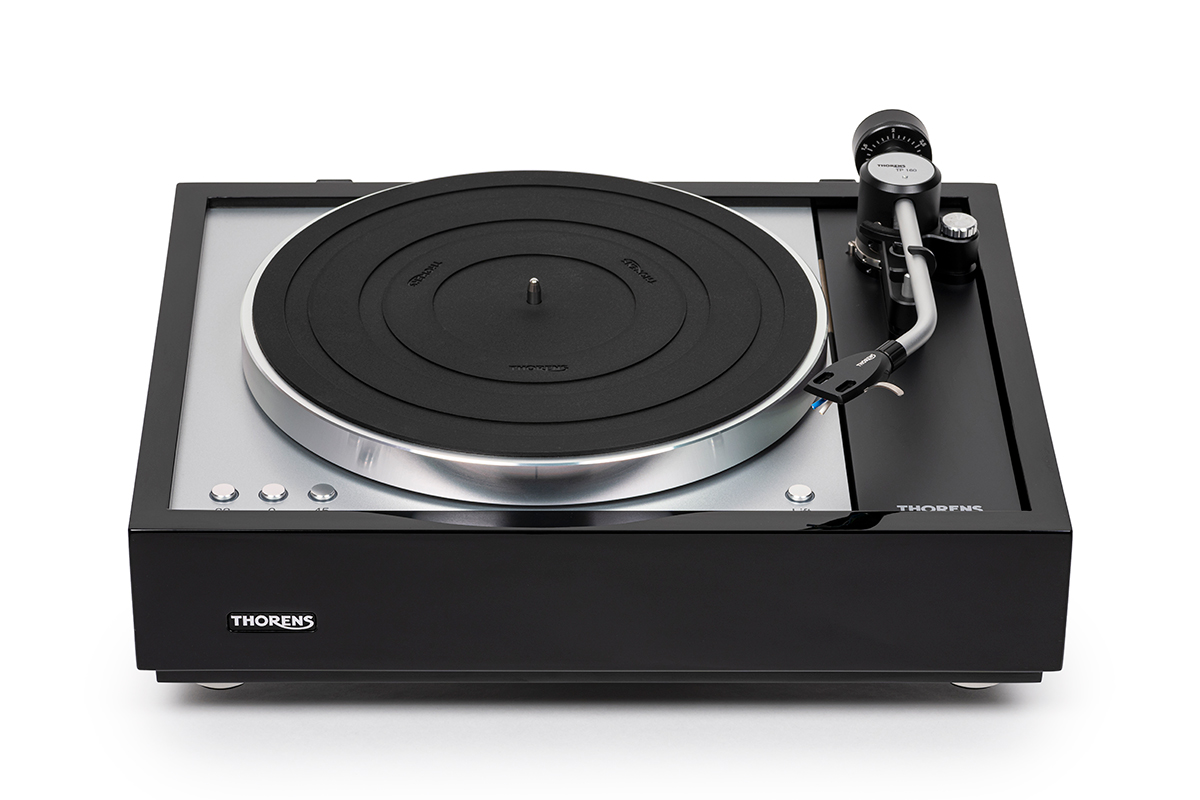

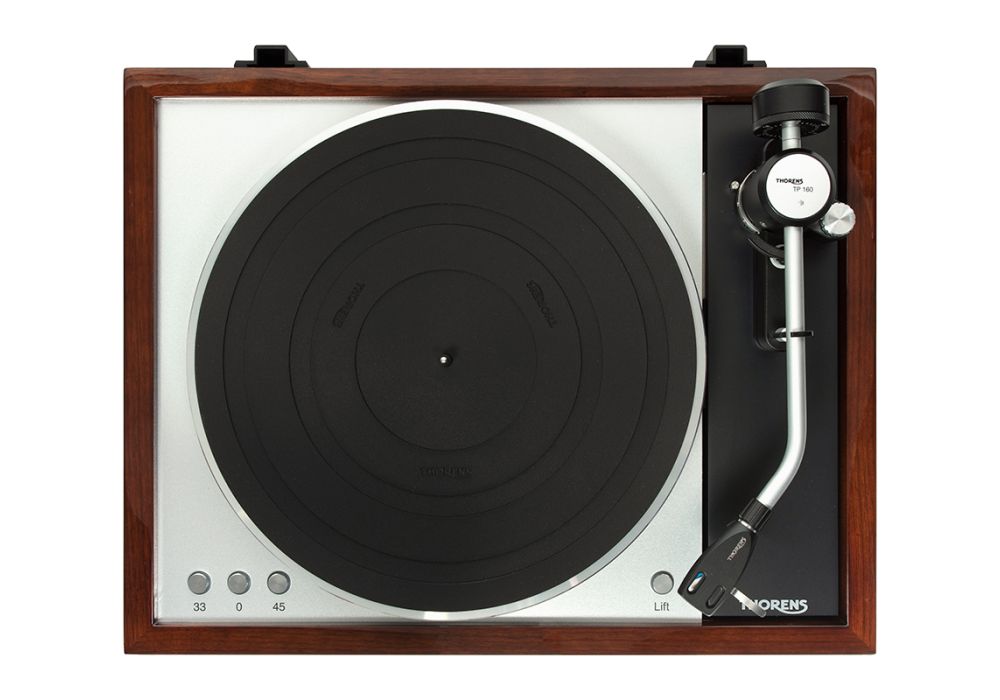

THE MULTI-AWARD-WINNING TD 1601 WITH IMPROVED TONEARM TP 160

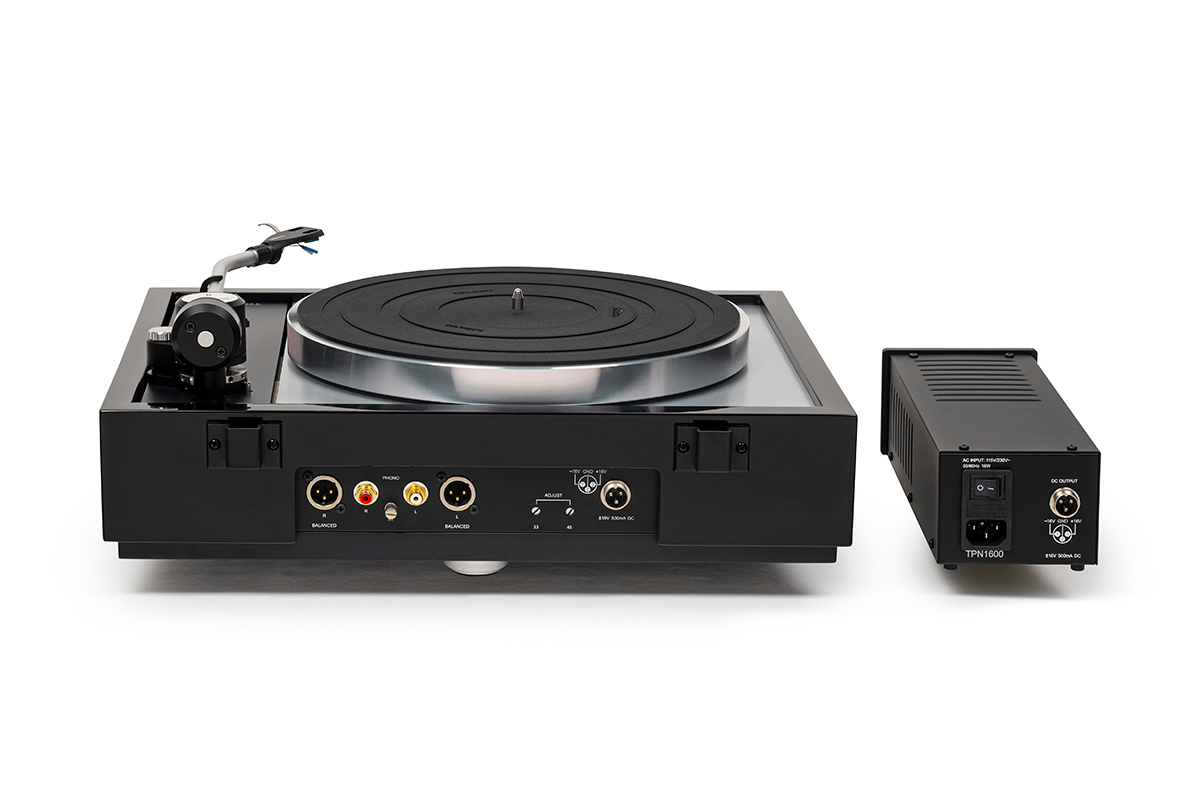

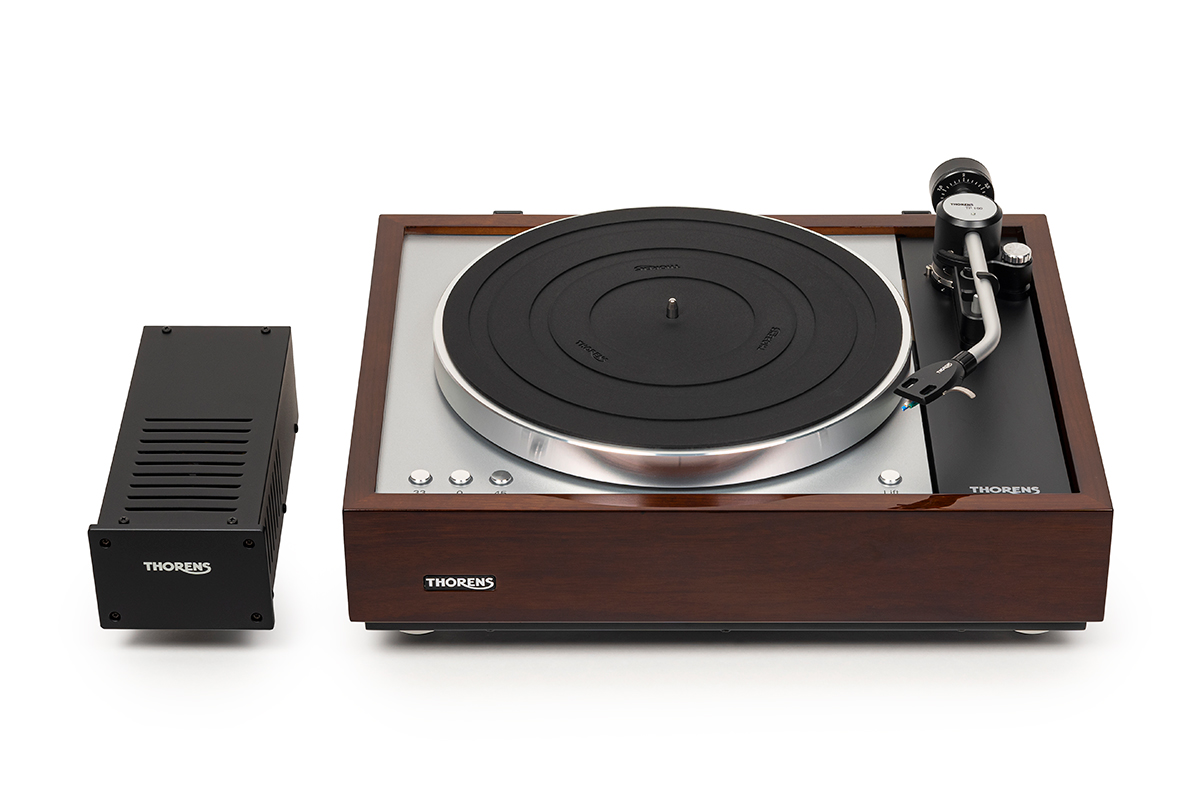

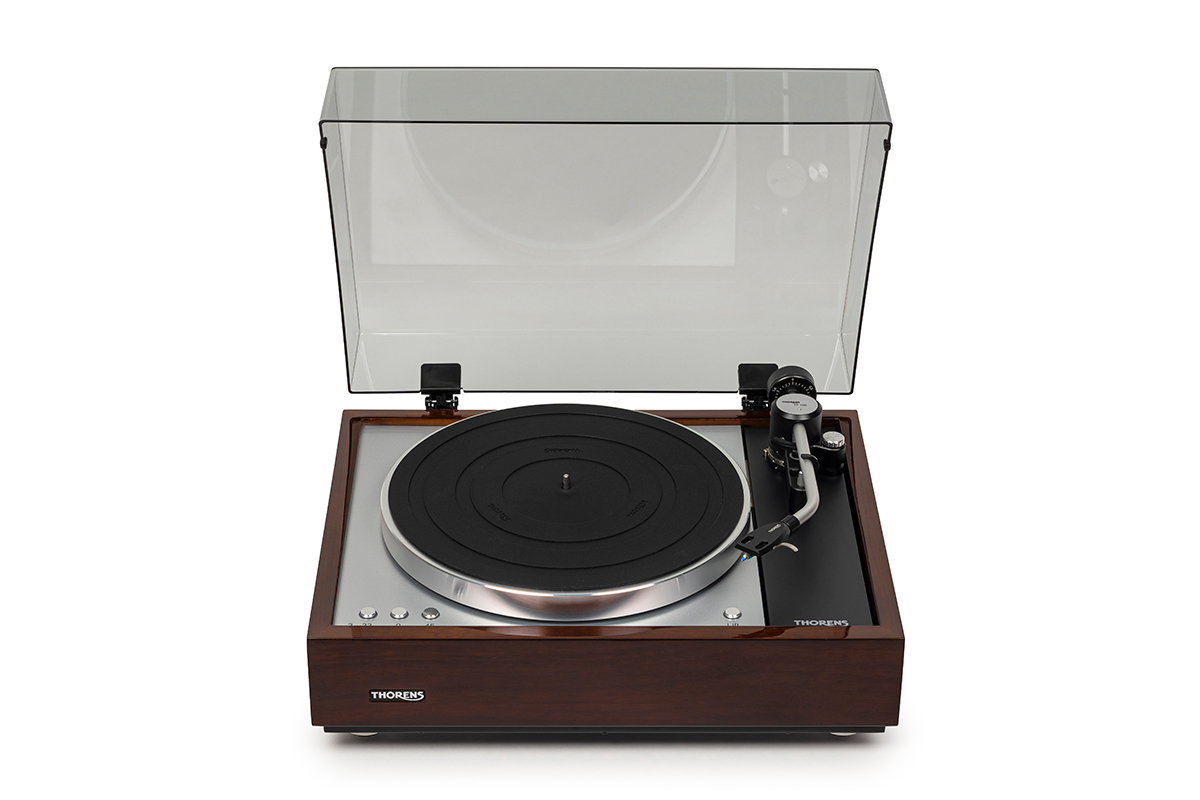

The TD 1601, featuring the new TP 160 tonearm, represents a consistent evolution of the multi-award-winning TD 1601. It possesses a classic wooden plinth, a two-part machined aluminum platter with an internally run ground drive belt. The external linear power supply TPN 1600 is equipped with a high-performance toroidal transformer and provides the synchronous motor with 2x 16V to ensure the highest possible rotational stability of the platter.

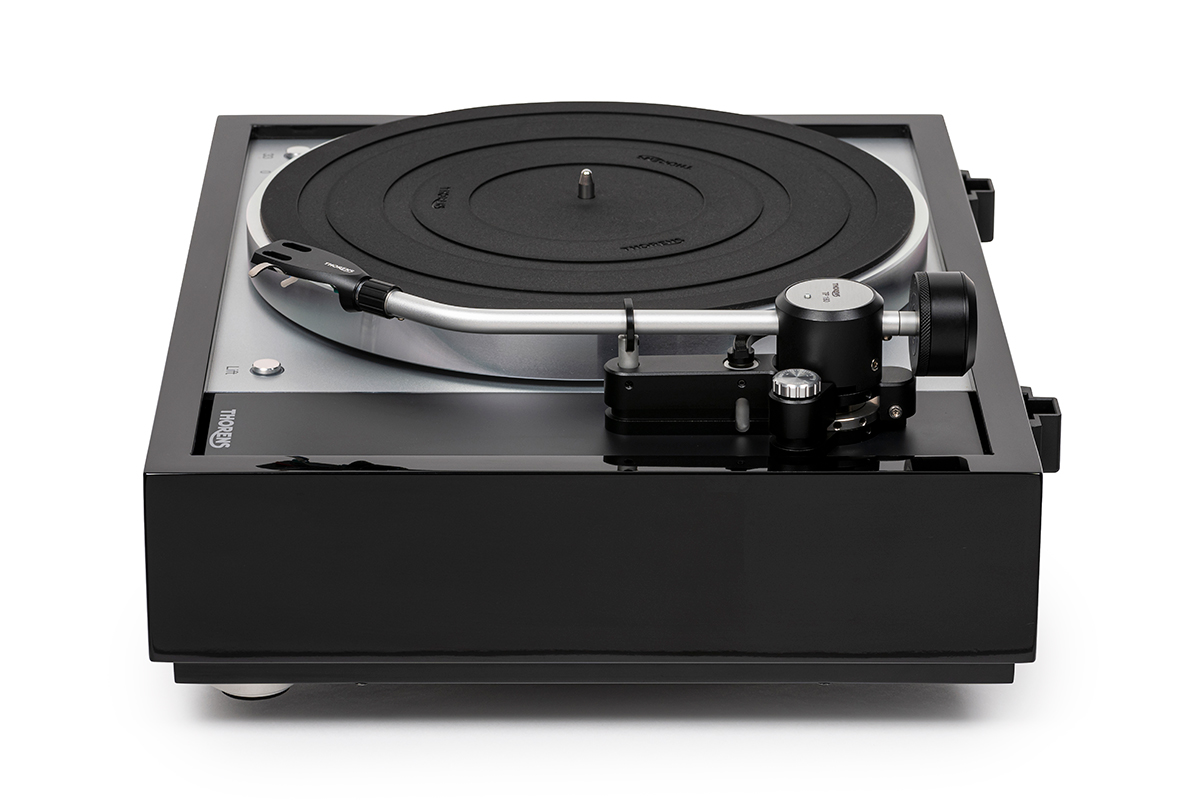

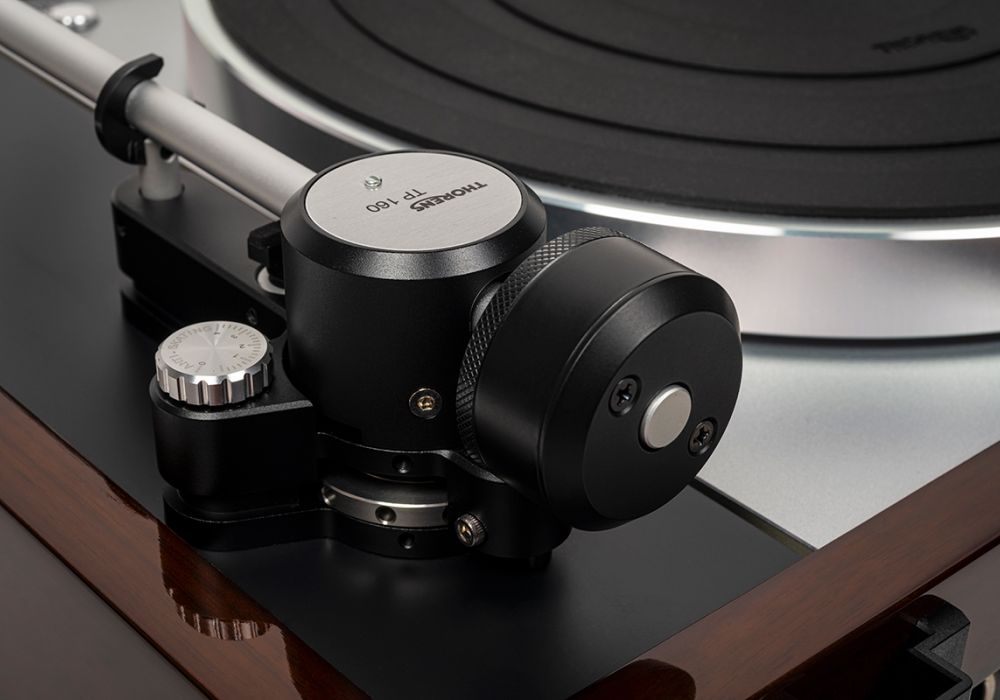

The new TP 160 tonearm was developed by the renowned designer Helmut Thiele and features an ultra-precise knife edge bearing. This J-shaped 9" tonearm with an SME headshell connection takes inspiration from the design of famous studio tonearms. The blade for the horizontal bearing is additionally stabilized by magnets to ensure the most precise tracking of the vinyl record.
The three springs of the subchassis do not hang from the top board but rest on the floor. Simultaneously, a tensioned steel thread extending from the motor pulley axis to the turntable axis prevents lateral tilting and ensures the subchassis swings as piston-like as possible. In addition, it provides the convenience of a patented electric lift and a touchless shut-off mechanism.

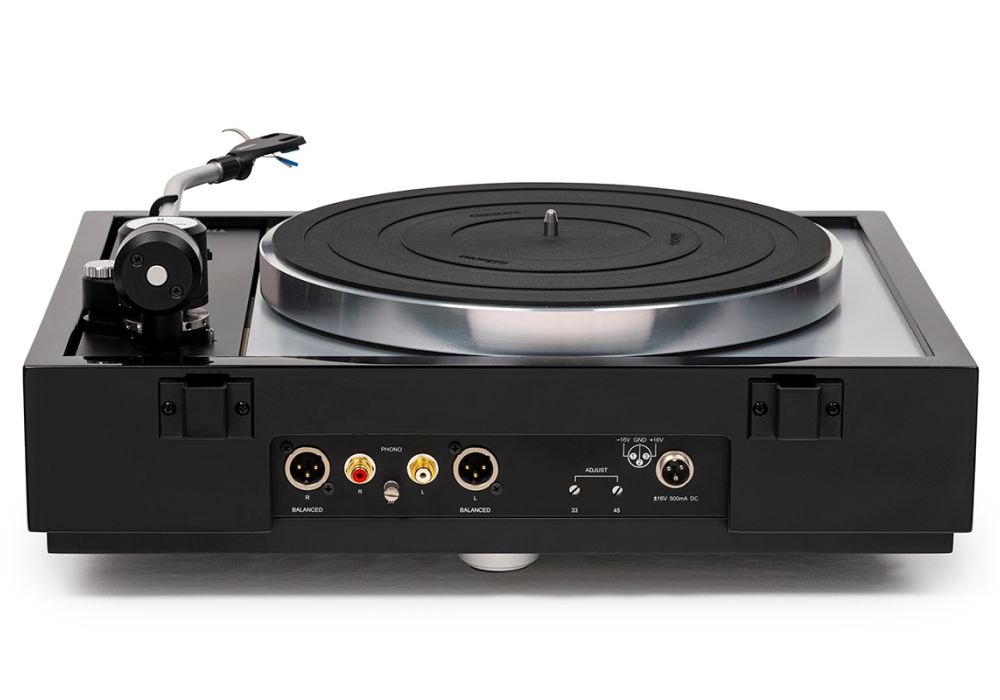

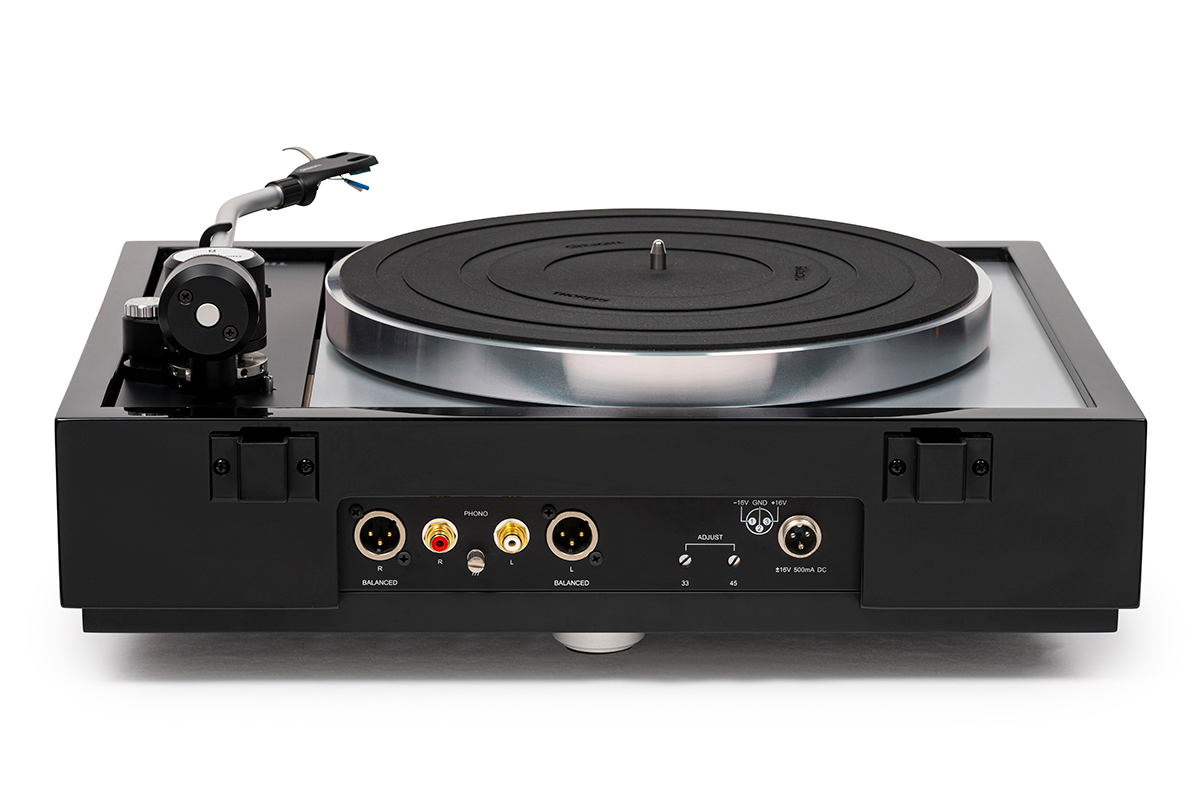

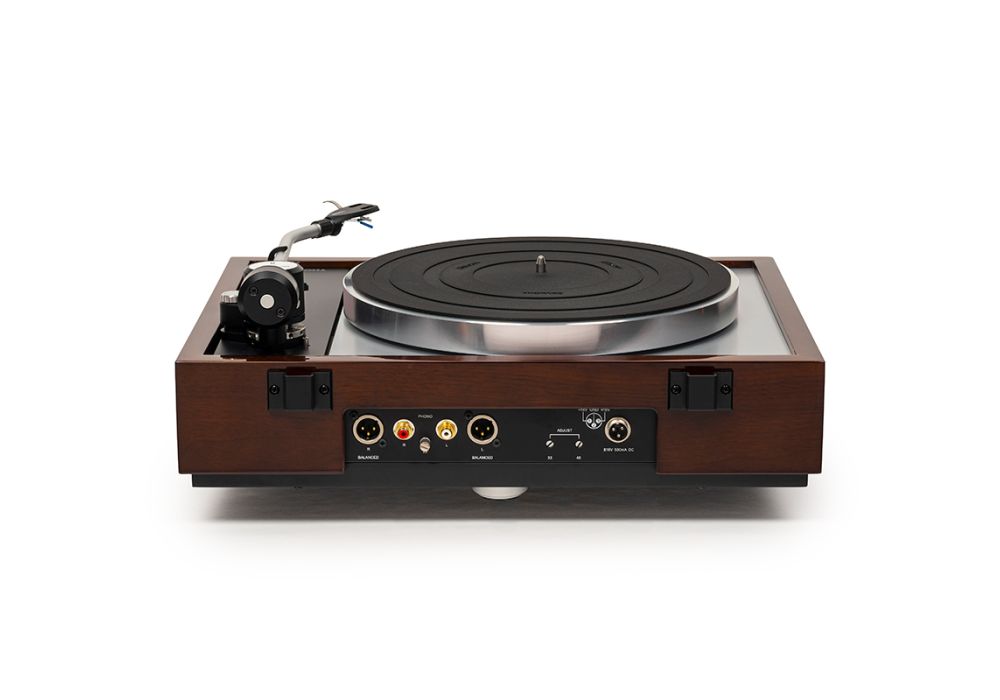

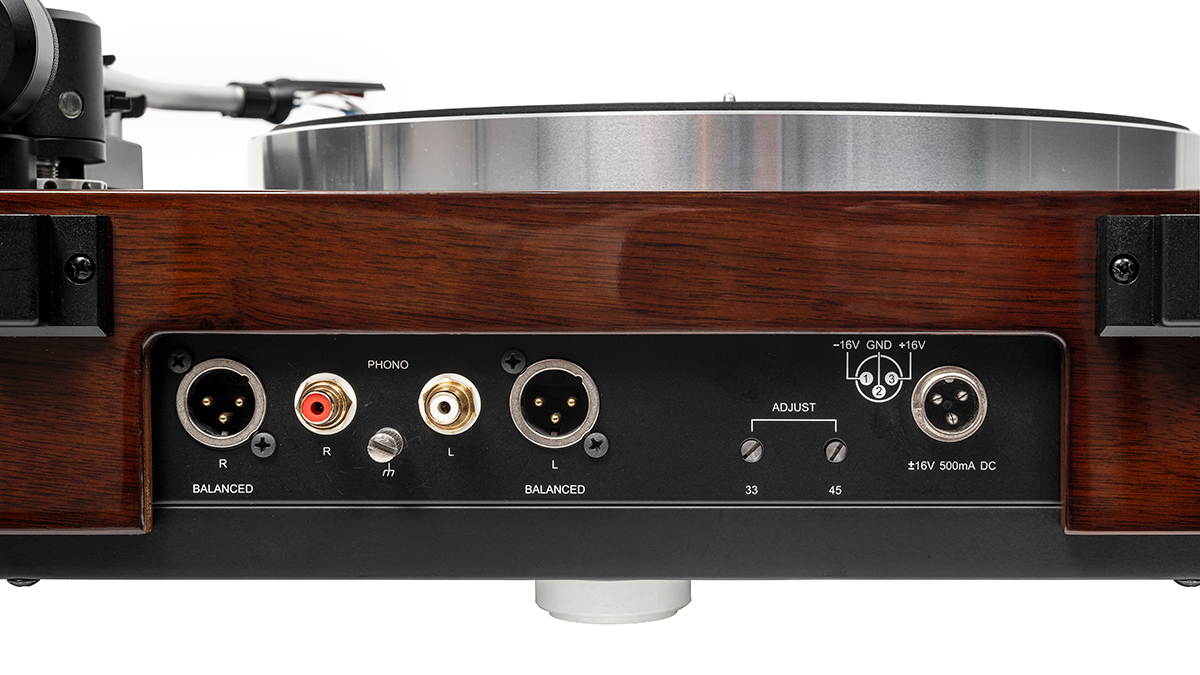

The balanced outputs (XLR) ensure a professional connection. Since the phono signal needs significant amplification, it is particularly susceptible to electrical interference. The balanced connection via the XLR sockets ensures the least possible interference-free connection between the turntable and the phono preamplifier. To utilize the True Balanced Connection, the turntable must be equipped with a moving coil (MC) cartridge.
- Stabilized sub chassis on three conical springs
- Precision pivot bearing tonearm TP 160 with SME headshell connector
- Machined precision belt
- Two-part machined aluminum platter
- Adjustable belt tension
- Electronically controlled synchronous motor
- Patented electric lift
- Touchless shut-off mechanism
- True balanced (XLR) and (RCA) outputs
- External linear power supply TPN 1600
